5083 Aluminum For Tanker

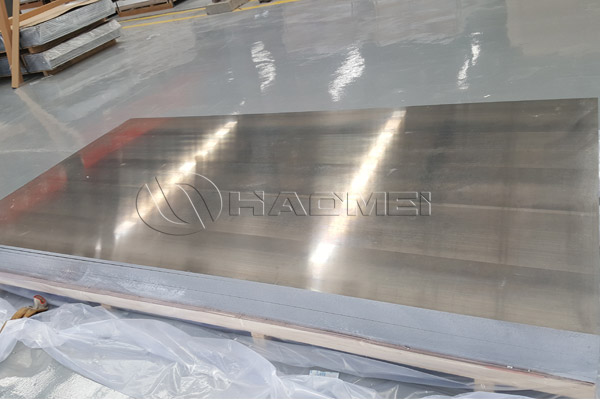

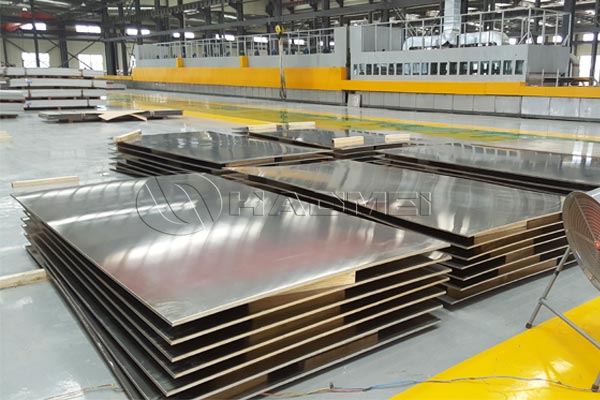

Haomei 5083 aluminium plate for oil tanker have excellent corrosion resistance and welding performance, with wide application in automotive, railway transportation, oil and chemical industrial etc. Haomei aluminium is able to offer 5083 aluminium plate which is used for oil tank body and pressure container body.
5083 aluminum for tanker with magnesium as main alloy element, is a low-magnesium and non-heat-treatable alloy, has good formability and corrosion resistance performance, highly suitable for chemicals and fuel tanker.

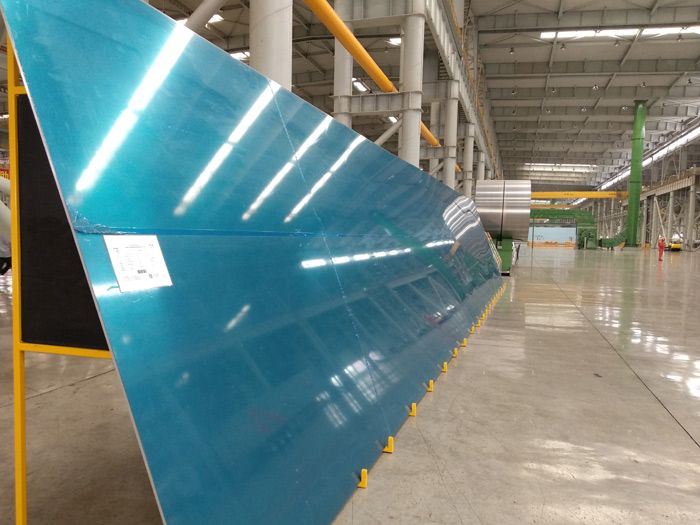

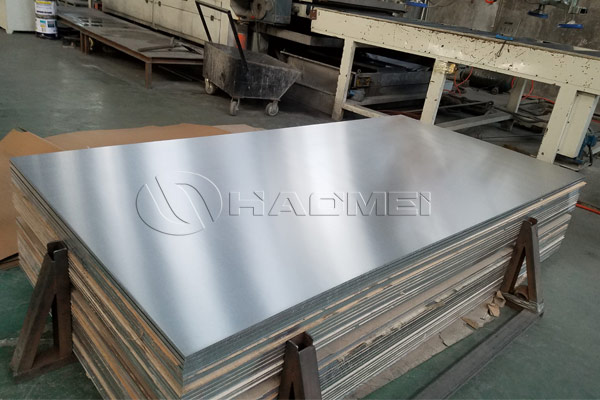

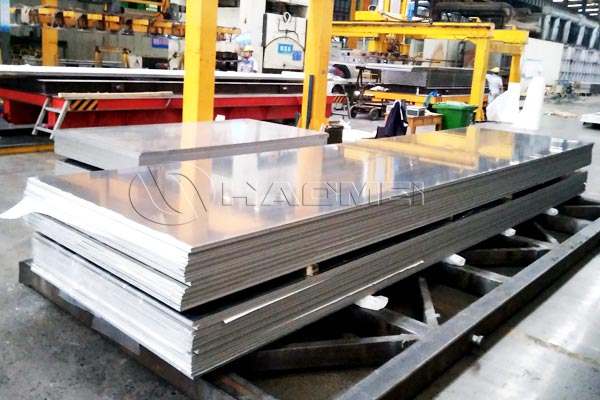

Specification of 5083 Aluminum Plate For Tanker:
Alloy | Temper | Product Type | Thickness (mm) | Width(mm) | Length(mm) | |
5083 | O, H12, H24, H32, H111, H112 | Plate | Wide Plate | 4-8 | 2200-2600 | 2000-12000 |
Standard Plate | 4-8 | 1500-2200 | 2000-12000 | |||
Coil | Wide Plate | 4-8 | 2200-2600 | - | ||
Standard Plate | 4-8 | 1500-2200 | - | |||
Quality Control Points
Part | Control Points | ||
Barrel, head | Surface quality Mechanical Property Thickness tolerance | -- | Flatness |
Wall partition,Resistance plate | Mechanical Property Thickness tolerance | Surface Quality | Flatness |
Chemical Composition of 5083 Aluminium Plate For Tanker:
Alloy series | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | |
5083 | Min. | － | － | － | 0.40 | 4.0 | 0.05 | － | － |
Max. | 0.40 | 0.40 | 0.10 | 1.0 | 4.90 | 0.25 | 0.25 | 0.15 | |
Mechanical Properties of 5083 Aluminum Plate For Oil Tanker:
Alloy | Temper | Yield Strength | Tensile Strength | Elongation | 180°Min. Bend Radius | Standard |
5083 | O/H111 | ≥145 | 290-370 | ≥17 | 1.5t | EN14286 |
5083 | H32 | ≥215 | 305-385 | ≥12 | -- | ASTM B209 |
Advantages of 5083 Aluminum For Tanker:
1. Aluminum alloy sheet 5083 has good plasticity, is easy to process, and has excellent forming properties.
2. Aluminum alloy plate 5083 has strong weldability, gas welding, arc welding, contact spot welding and wire welding can be used.
3. Aluminum alloy plate 5083 has anti-skid, anti-rust functions and strong corrosion resistance.
4. In the production process of 5083 aluminum plate, Haomei Aluminum added a small amount of Be, which reduced the tendency of ingot cracking and improved the surface quality of the rolled plate.
Application of 5083 Aluminium For Tanker:

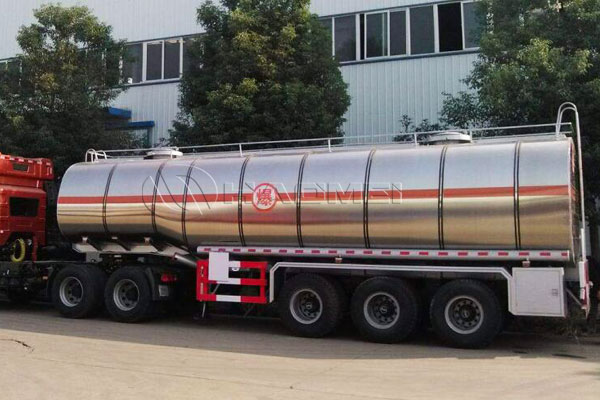

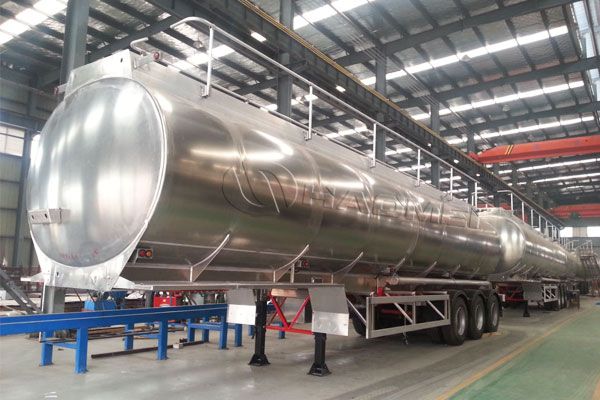

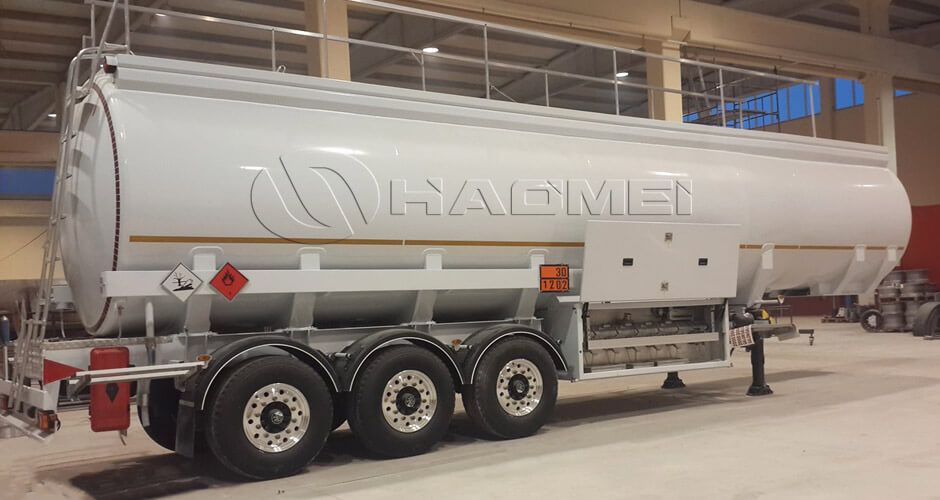

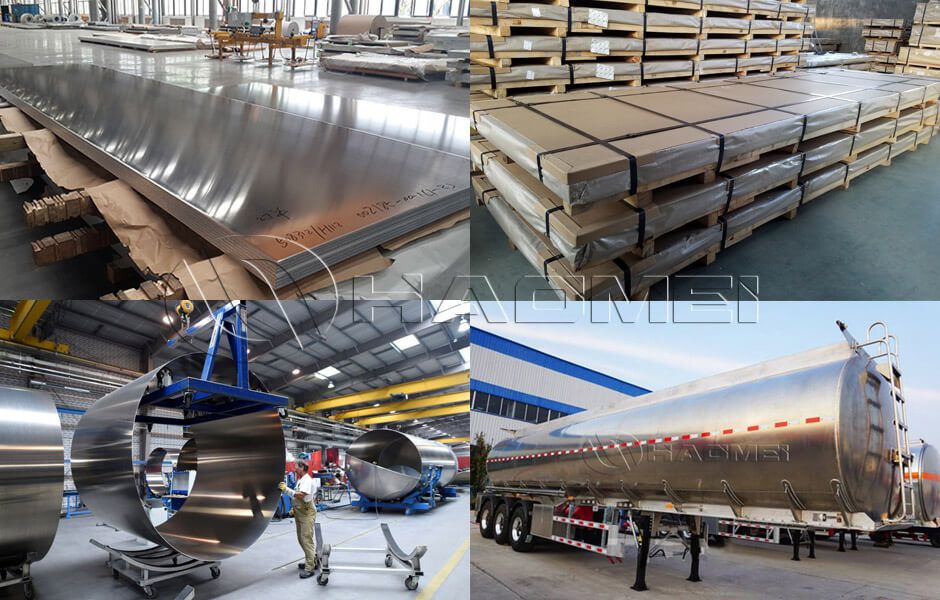

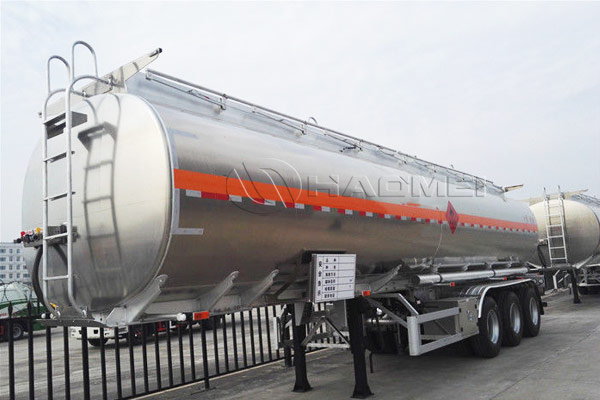

5083 aluminum plate is widely used in transportation and storage of chemical industry, such as oil tanker, fuel tanker, LNG tank truck, CNG tank truck, chemical liquid and gas tanker etc.
