Aluminum For Oil Tanker
The alloy of aluminum sheet plate for oil tanker making are mainly 5000 series aluminium, which element is Mg, The alloy number of aluminum plate for oil tanker is including 5083, 5454, 5754 and 5182. And the temper are O, H12, H24, H32, H111, H112 and so on.

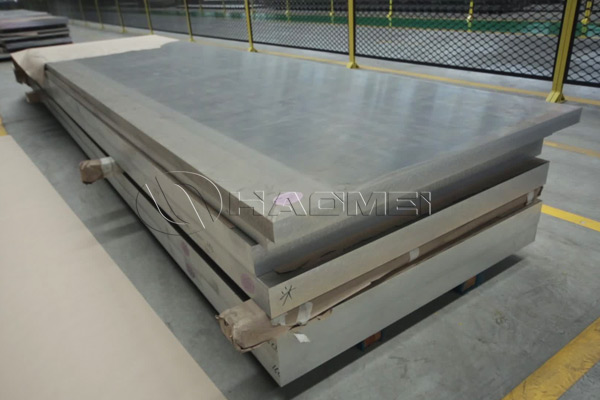

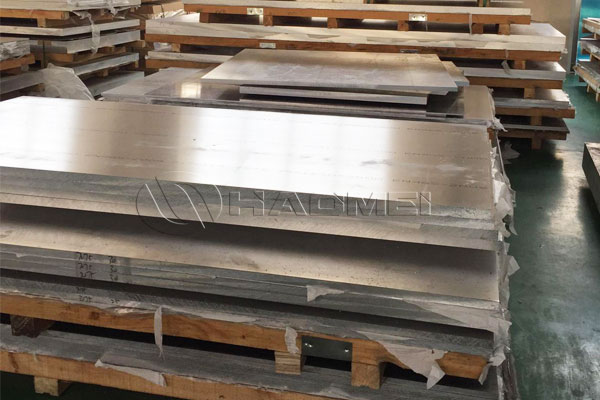

Specification of Aluminum For Oil Tanker:
Alloy No. | Thickness (mm) | Width (mm) | Length (mm) | |
5083 | Min. | 4 | 1000 | 2000 |
Max. | 8 | 2800 | 12600 | |
5182 | Min. | 4 | 1000 | 2000 |
Max. | 8 | 2800 | 12600 | |
5454 | Min. | 4 | 1000 | 2000 |
Max. | 8 | 2800 | 12600 | |
Chemical Composition of Aluminum Plate For Oil Tanker:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Standard |
5083 | 0.40 | 0.40 | 0.10 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | EN573 |
5182 | 0.20 | 0.35 | 0.15 | 0.20-0.50 | 4.0-5.0 | 0.10 | 0.25 | 0.10 | |
5454 | 0.25 | 0.40 | 0.10 | 0.50-1.0 | 2.4-3.0 | 0.05-0.20 | 0.25 | 0.20 |
Mechanical Properties of Aluminium Plate For Oil Tanker:
Alloy | Temper | Yield Strength | Tensile Strength | Elongation | 180°Min. Bend Radius | Standard |
5083 | O/H111 | ≥145 | 290-370 | ≥17 | 1.5t | EN14286 |
5083 | H32 | ≥215 | 305-385 | ≥12 | -- | ASTM B209 |
5182 | O/H111 | ≥125 | 280-350 | ≥26 | t | EN14286 |
5454 | O/H111 | ≥85 | 215-285 | ≥19 | t | EN14286 |
5454 | H32 | ≥180 | 250-305 | ≥12 | -- | ASTM B209 |
Advantages of Aluminum Sheet For Oil Tank:
1. The aluminum alloy material has small density and light weight, can reduce the weight of the truck itself, but also reduce fuel consumption and exhaust emissions, and protect the environment.
2.Good corrosion resistance, long-term exposure to air is not easy to rust, it can also reduce the internal corrosion of the fuel tank and easy to clean.
3.Excellent weldability, the oil tank is welded with aluminum plate, which is not easy to leak oil.
4.The safety is high,when the heavy impact is encountered, the oil tank of aluminum alloy is not easy to crack, so it greatly reduces the probability of oil leakage and explosion, and plays a certain role in driving safety.
Application of Aluminium Sheet For Oil Tank:

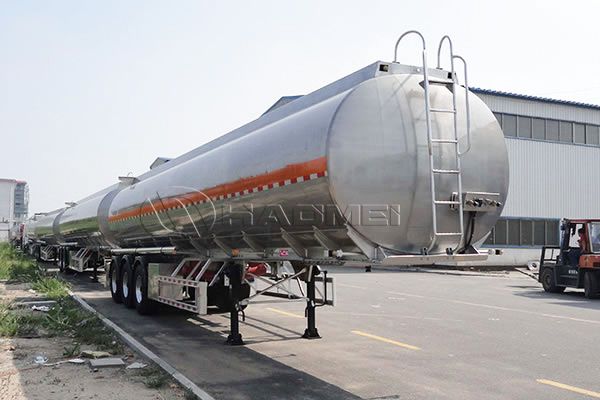

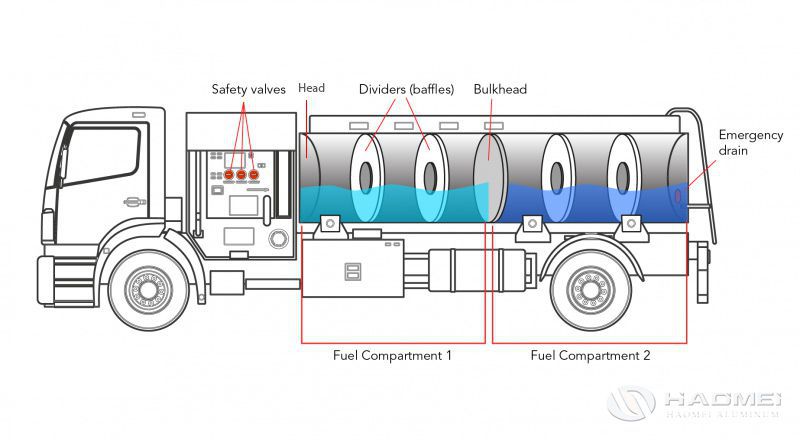

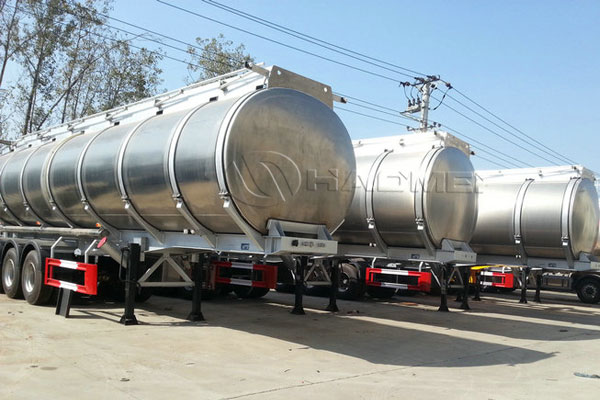

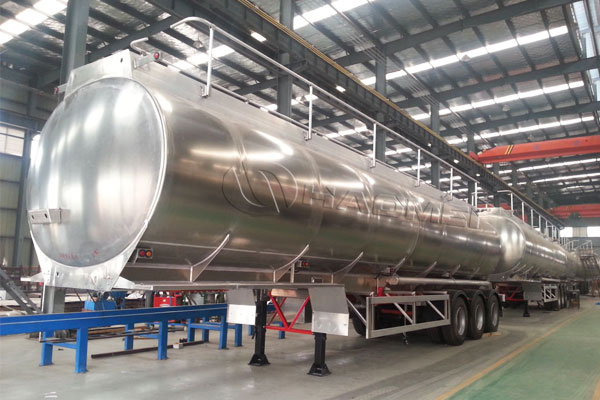

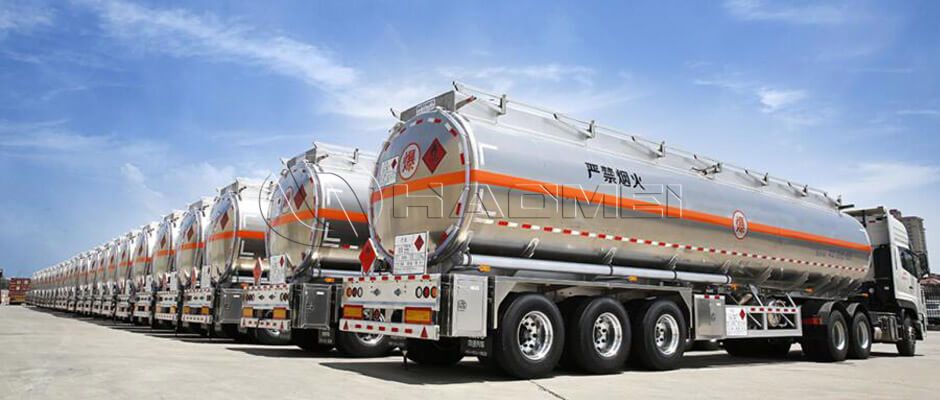

1) Oil tanker
2) Fuel tanker
3) LNG storage tank
