5454 Aluminum For Tanker

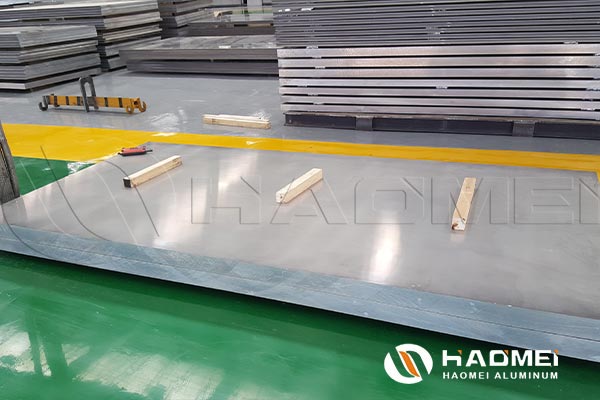

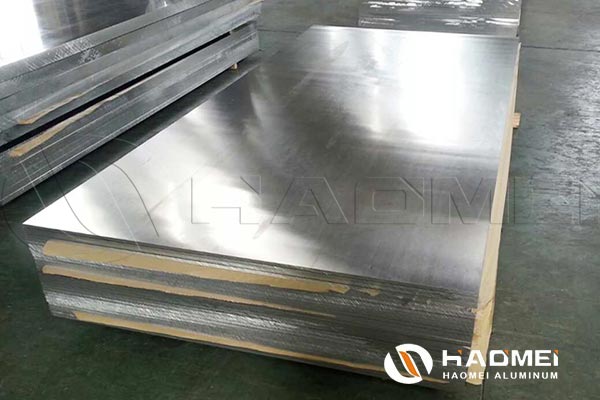

5454 aluminum plate for tanker belongs to low-magnesium alloy with magnesium content between 2.4% - 3.0% by weight, especially has excellent elevated temperatures adaptability, also has moderate strength and good weldability, that makes it be tanker aluminum plate. Aluminum 5454 for tank manufactured by Haomei Aluminum has been widely used in tank truck market.

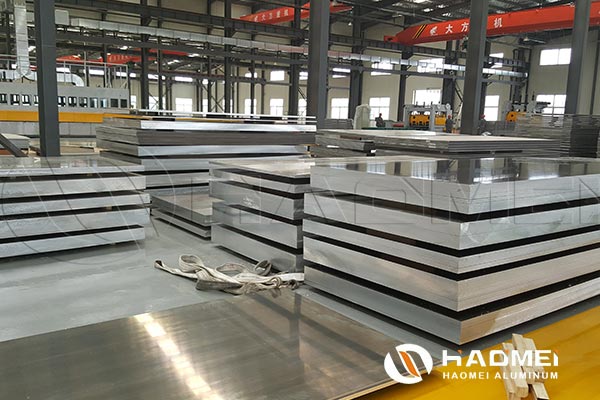

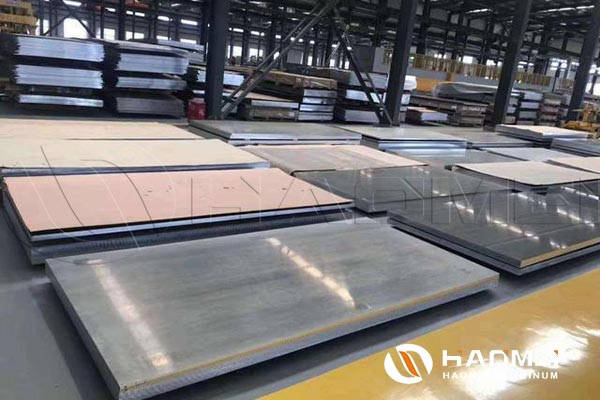

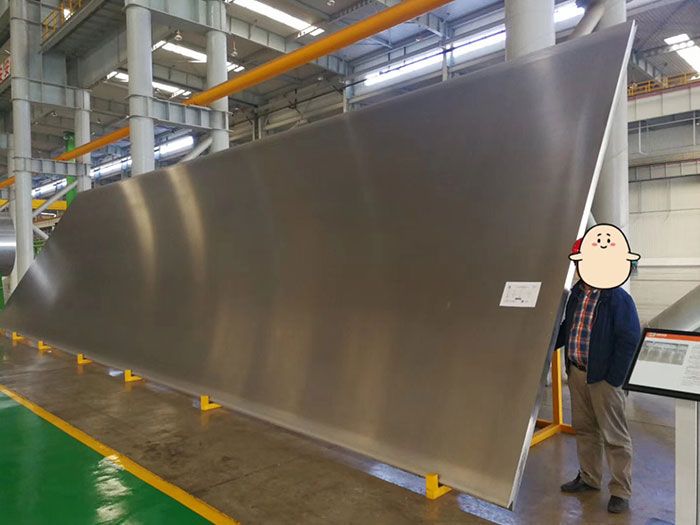

Specification of 5454 Aluminum Plate For Tanker:
Alloy | Temper | Product Type | Thickness (mm) | Width(mm) | Length(mm) | |
5182 | O, H12, H24, H32, H111, H112 | Plate | Wide Plate | 4-8 | 2200-2600 | 2000-12000 |
Standard Plate | 4-8 | 1500-2200 | 2000-12000 | |||
Coil | Wide Plate | 4-8 | 2200-2600 | - | ||
Standard Plate | 4-8 | 1500-2200 | - | |||
Chemical Composition of 5454 Aluminium Plate For Tanker:
Alloy series | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | |
5454T | Min. | － | － | － | 0.5 | 2.4 | 0.05 | － | － |
Max. | 0.25 | 0.40 | 0.10 | 1.0 | 3.0 | 0.20 | 0.25 | 0.20 | |
Mechanical Properties of 5454 Aluminum For Tanker:
Alloy | Temper | Yield Strength | Tensile Strength | Elongation | 180°Min. Bend Radius | Standard |
5454 | O/H111 | ≥85 | 215-285 | ≥19 | t | EN14286 |
5454 | H32 | ≥180 | 250-305 | ≥12 | -- | ASTM B209 |
Advantages of 5454 Aluminium For Tanker:
1.Automotive lightweight, reducing the weight, to increase the volume, reduce the fuel consumption and emission, improve the performance of the tanker truck.
2.Without any preservative treatment in the life of aluminum tanker, the life of tanker is min 15 years, extend the service life, save maintenance cost.
3.Aluminum alloy have the good ductility, not easy to crack when collision. Good electrical conductivity, won’t produce instantaneous discharge. When collision or tilting, can not produce sparks, eliminate the potential safely hazard, more suitable for oil and fuel transportation.
Application of 5454 Aluminum Sheet For Tanker:

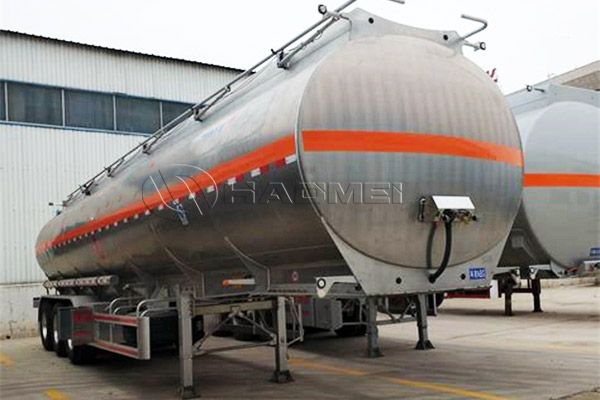

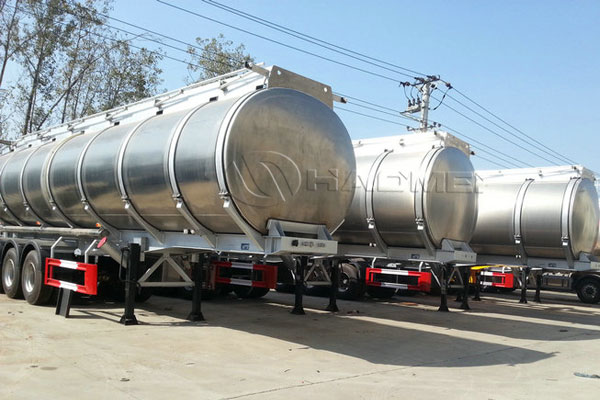

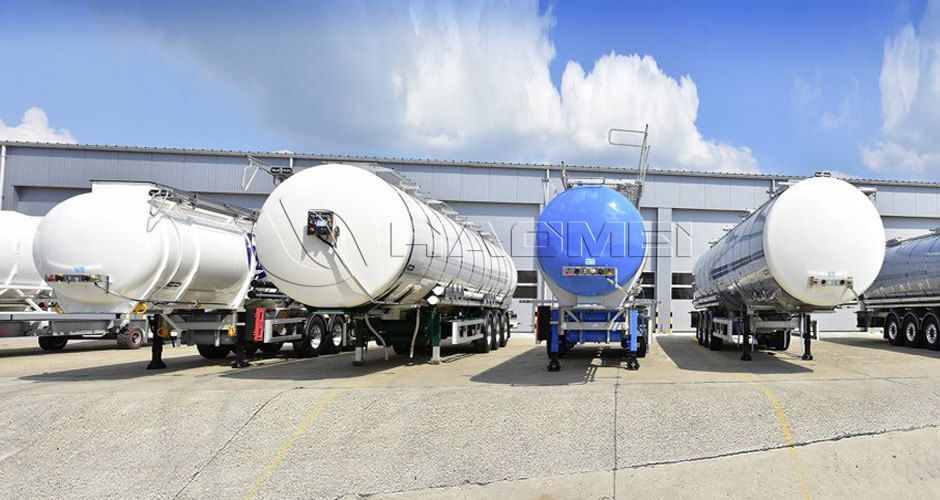

5454 aluminum sheet for oil and fuel tanker has reliably been used for transportation and storage of chemical industry, such as fuel tank car, oil tank car, high temperature chemical liquid and gas tanker etc.
