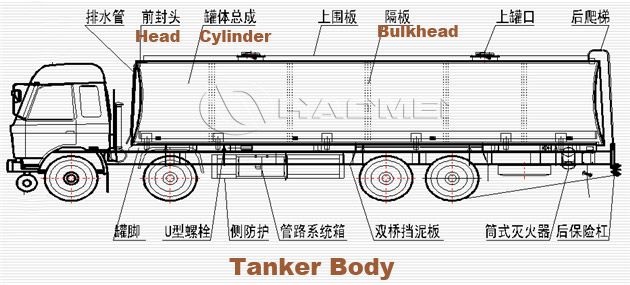

Aluminum For Tanker Body

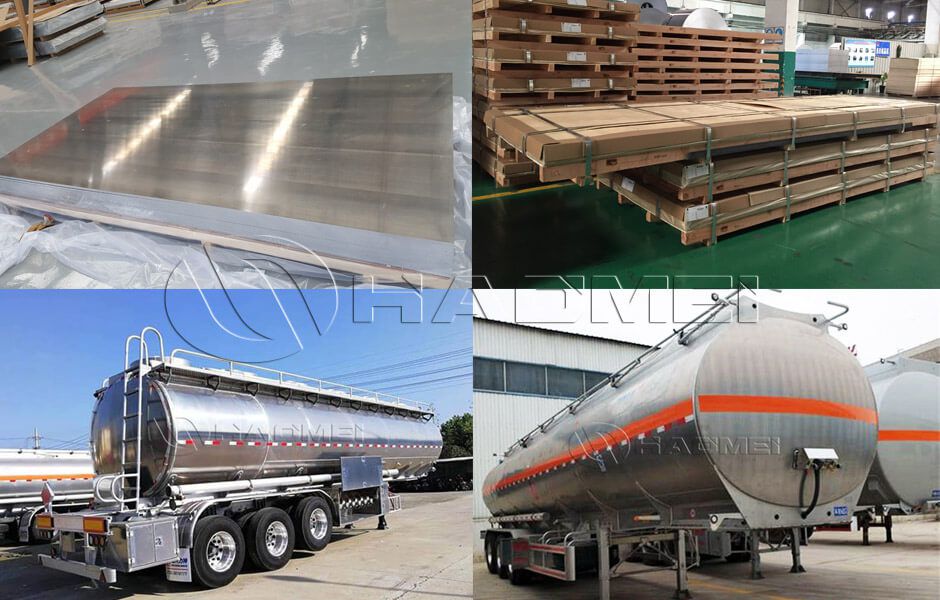

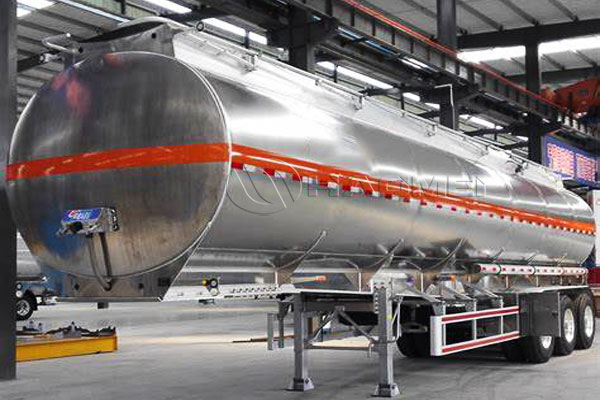

The aluminum tank body is made by aluminum alloy 5083 5182 and aluminum alloy 5454, with the advantages of light tare weight, high safety, less operation cost. It is a popular products among the fuel and oil transporter. It is used to transport highly flammable light oil on road.

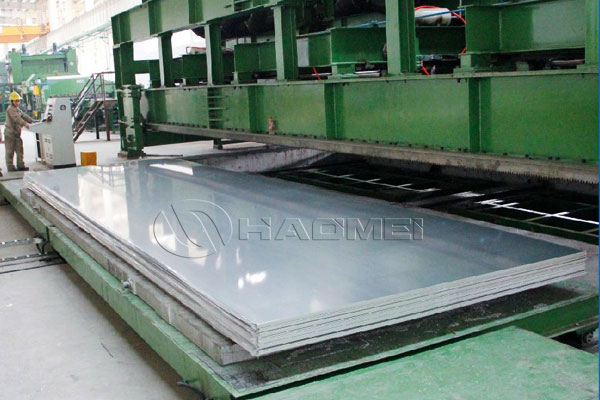

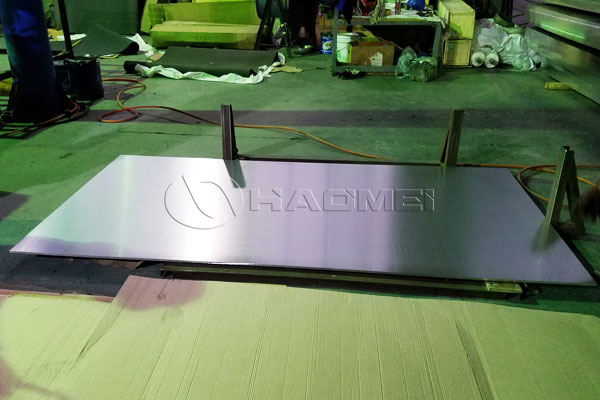

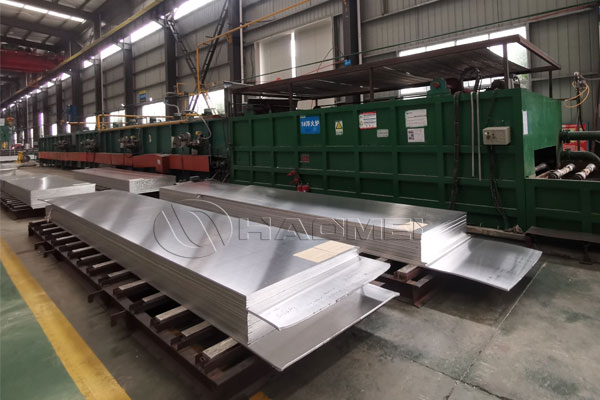

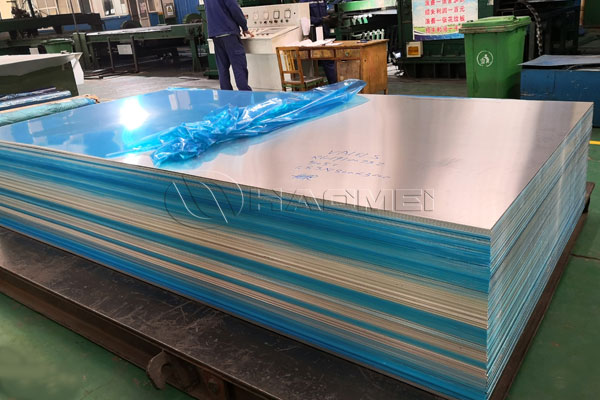

The aluminum plate for tanker body alloy has a low density and a high strength. The use of aluminum alloy tankers is lighter than that of carbon steel tankers, which reduces fuel consumption and wear on tires during transportation, thereby reducing daily operating expenses and maintenance costs.

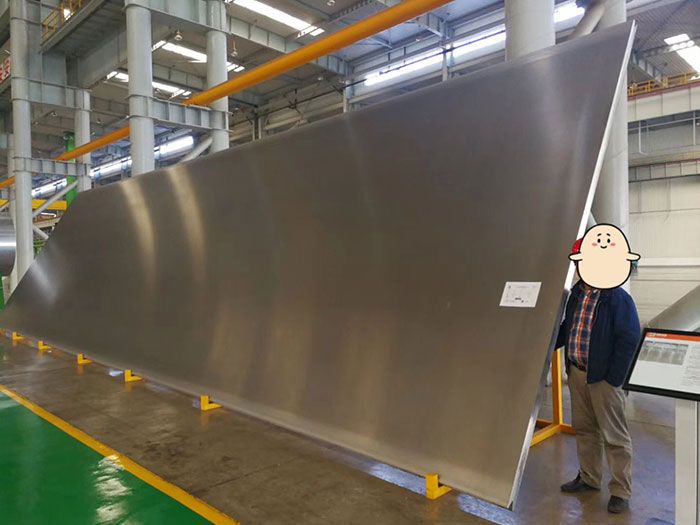

Specification of Aluminum For Tanker Body:
Alloy No. | Thickness (mm) | Width (mm) | Length (mm) | |
5083 | Min. | 4 | 1000 | 2000 |
Max. | 8 | 2800 | 12600 | |
5182 | Min. | 4 | 1000 | 2000 |
Max. | 8 | 2800 | 12600 | |
5454 | Min. | 4 | 1000 | 2000 |
Max. | 8 | 2800 | 12600 | |
Chemical Composition of Aluminum Plate For Tanker Body:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others(%) | |
Each | Sum | |||||||||
5083 | 0.20 | 0.35 | 0.15 | 0.20-0.50 | 4.0-5.0 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 |
5754 | 0.40 | 0.40 | 0.10 | 0.05 | 2.6-3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 |
5454 | 0.25 | 0.40 | 0.10 | 0.50-1.0 | 2.4-3.0 | 0.05-0.20 | 0.25 | 0.20 | 0.05 | 0.15 |
5182 | 0.20 | 0.35 | 0.15 | 0.20-0.50 | 4.0-5.0 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 |
5059 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | / | / | / |
Mechanical Properties of Aluminium Plate For Tanker Body:
Alloy | Temper | Yield Strength Rp0.2(Mpa) | Tensile Strength Rm(Mpa) | Elongation A50(50%) |
5083 | O/H111 | ≥145 | 290-370 | ≥17 |
H32 | ≥215 | 305-385 | ≥12 | |
5754 | O/H111 | 190-240 | ≥80 | ≥16 |
H112 | ≥190 | ≥80 | ≥7 | |
5454 | H32 | ≥250 | ≥180 | ≥8 |
5182 | O/H111 | ≥125 | 280-350 | ≥26 |
5059 | O/H12/H32 | 401 | 280 | 16.2 |
Different Type Aluminum Tanker Body Plate:
Type | Standard Plate | High Class Plate | Bright Plate | Mirror Plate |
Surface | ★★★☆☆ | ★★★★☆ | ★★★★☆ | ★★★★★ |
Roughness Ra/μm | 0.5-0.8 | 0.3-0.5 | 0.1-0.3 | ≤0.04 |
Product Description | Smooth surface Defect deepness ＜Minus Tolerances Of Thickness | Fine and smooth surface No or only very little colour aberration and chatters | Bright, fine and Smooth surface No colour aberration and chatters | Mirror reflective Surface Reflectance ≥86% |
Applicable Standards | GB/T 3880 | EN14286 ASTM B209 EN485 Customer special requirements | EN14286 ASTM B209 Customer special requirements | EN14286 ASTM B209 Customer special requirements |
Application | Use directly or After brushing Tanker Body, Tanker Head Wall Partition, Resistance Plate | Use directly Tanker Body, Tanker Head Wall Partition, Resistance Plate | Use directly Tanker Body, Tanker Head | Use directly Tanker Body, Tanker Head |
Advantages of Aluminum Sheet For Tanker Body:
1. Good elongation, high strength, good compatibility with gasoline and diesel, which can avoid high-quality pollution.
2. Corrosion resistance, no need to do surface metal treatment for anti-corrosion, even if the car body is scratched, it will not rust.
3. The service life is long, and the old aluminum alloy tank with better maintenance can also be used on the new chassis, even if the tank is scrapped, it has a higher recycling value.

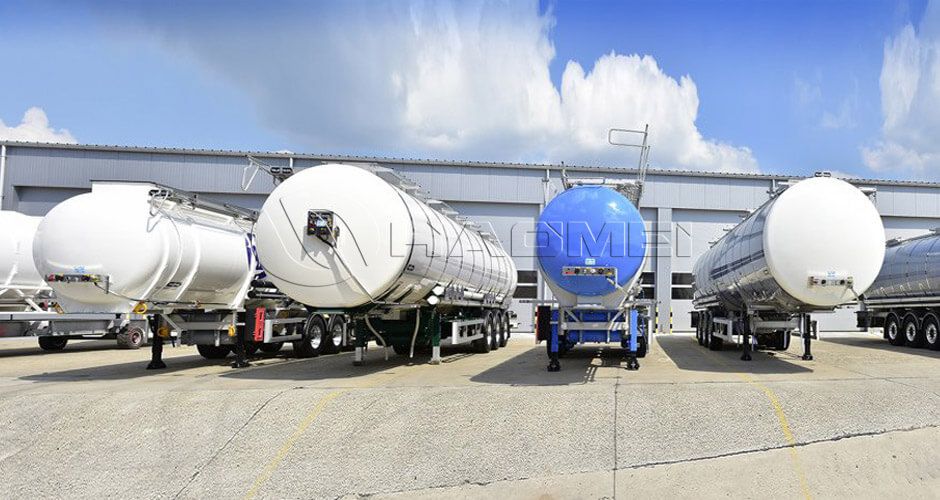

Application of Aluminium Sheet For Tanker Body:

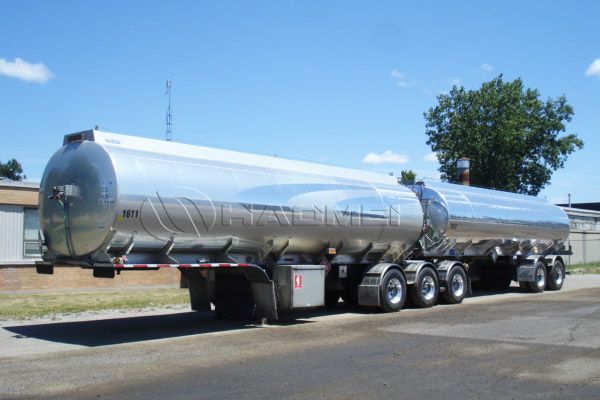

1) Oil tanker
2) Fuel tanker

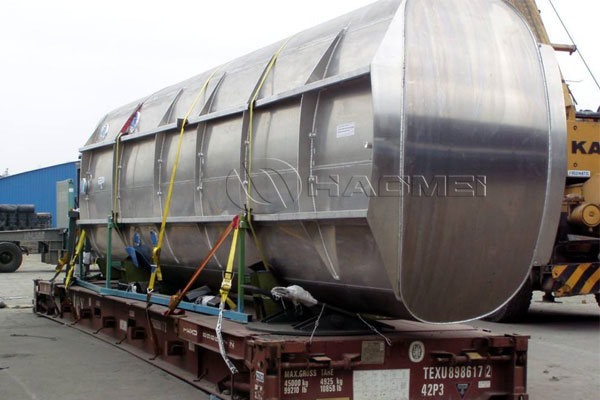

3) LNG storage tank
4) Semi Trailer
